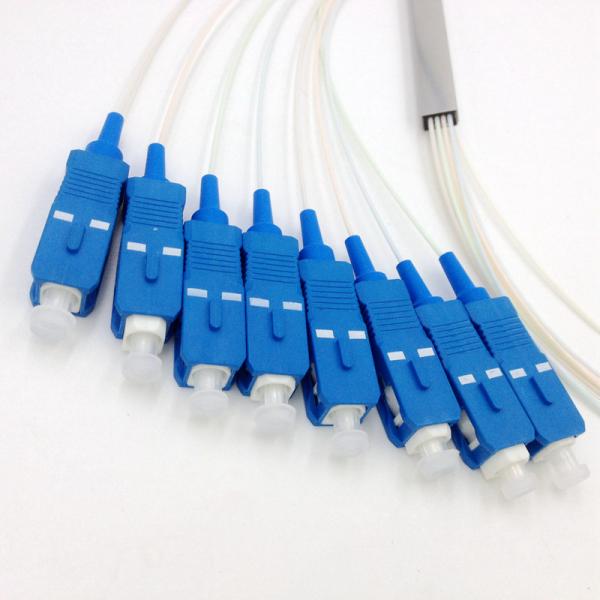

1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector

Model Number : 1*8 fiber optic plc splitter

Place of Origin : China

Brand Name : ODM/OEM

Certification : ISO9001

Packaging Details : Carton box

MOQ : 20 pieces

Price : $5.00/pieces 20-499 pieces

Payment Terms : T/T, Western Union

Type : FTTx Solutions

Use : FTTH

Warranty Time : 1 year

Product name : 1*8 PLC splitter

Fiber Type : G657A1

Cable length : 1m

Steel tube size : 60x7x4mm

Connector Type : SC APC

Operating Wavelength(nm) : 1260~1650

Package : 200 pcs/carton box

Carton size : 43*40*41cm

Return Loss (dB) : UPC ≥55;APC≥55

Contact Now

Supply Fiber Optic Mini Plc Splitter 1x8 With SC UPC Connector
Mini Module PLC Splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. These are widely used in PON networks to realize optical signal power splitting as a low-cost solution.
1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector

1.Excellent Mechanical,Small Size
2.High Reliability
3.Low insertion Loss and low Polarization Dependent loss
4.High channel counts
5.Excellent Environmental Stability and Widely Used

6.FTTX Deployments(GPON/BPON/EPON)
7. Cable television (CATV)
8. CATV Links
9.Passive optical networks(PON)

1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector
Application
1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector
1, Split ratio 1:8
2, Wide operating band: 1260-1650 nm,
3, 1.5 m long optical cables terminated with SC connectors,
4, Compact size,
5, High stability.
Specifications
Specifications
Port Configuration
1x2
1x3
1x4
1X6
1x8
1X12
1x16
1x32
1x64
Insertion Loss (dB)
4.1
6.5
7.5
10.0
10.8
12.9
13.8
17.0
21.4
Loss Uniformity (dB)
0.6
0.6
0.6
0.6
0.8
1.0
1.2
1.5
1.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.2
0.2
0.2
0.25
0.3
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Dependent Loss (dB)
0.4
0.4
0.4
0.4
0.4
0.4
0.5
0.5
0.5
Return Loss (dB)
UPC ≥55；APC≥55
Directivity (dB)
≥ 55
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A1 or customer specified
Operating Temperature
-40~+85
Storage Temperature
-40~+85
Our Company
1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you
1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector
1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector
1 Meter Fiber Optic Mini PLC Splitter 1x8 With SC UPC Connector
FAQ & Contact
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
